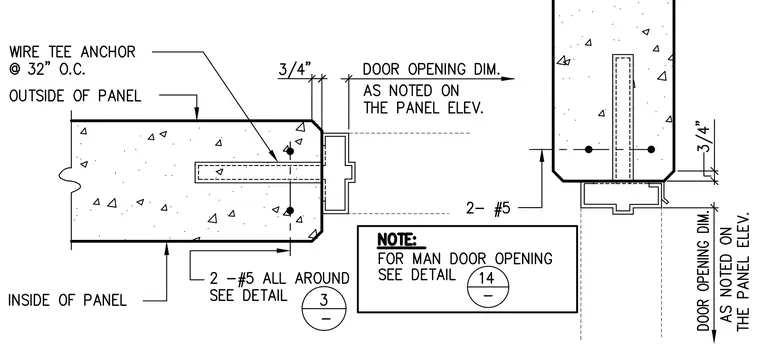

A precast concrete wall panel door head assembly incorporates a wire tee anchor spaced at thirty-two inches on center. Two number five reinforcing bars run all around the panel opening as noted on the drawing. Dimensions indicate a three-quarter-inch clearance from the outside and inside of the panel to the frame assembly. A note directs to detail three and detail fourteen for man door opening information.
