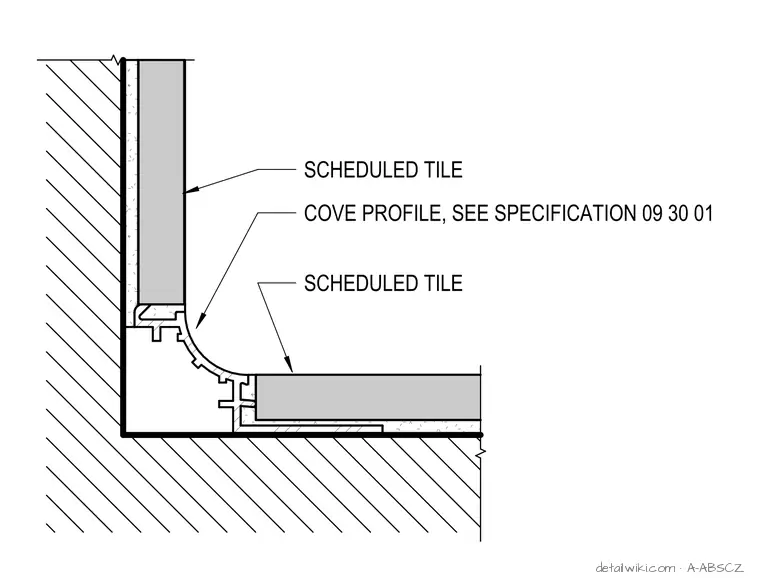

This assembly utilizes a metal cove profile to transition between the horizontal floor tile and the vertical wall tile. The cove profile is set at the interior corner where the floor meets the wall, providing a sanitary radius. Both the floor and wall surfaces consist of scheduled tile, with the specific cove profile selection referenced to specification section 09 30 01.
