A-ABR5B — Xlr Male Connector

Telecommunications · A-ABR5B

Xlr Male Connector

Materials

About this detail

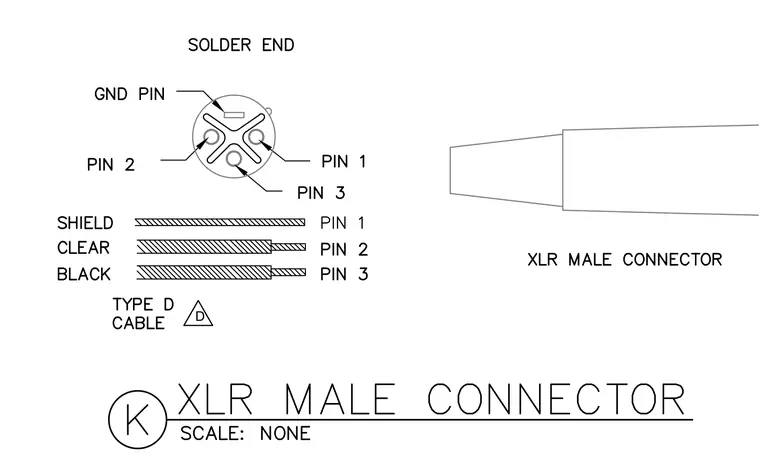

Solder end pinout configuration and wiring connections for an XLR male connector. The layout identifies the ground pin, pin one, pin two, and pin three on the connector face. Corresponding cable conductors, including shield, clear, and black wires for a type D cable, terminate at pins one, two, and three respectively.

D

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
