Architectural · A-ABQT8

Obstructed High Side Reach

Elements

About this detail

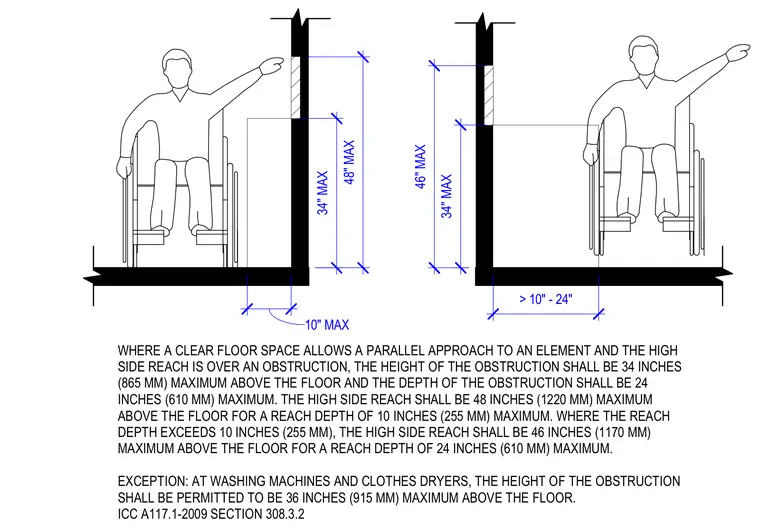

Where a clear floor space allows a parallel approach to an element and the high side reach is over an obstruction, the height of the obstruction is thirty-four inches maximum above the floor with a depth of twenty-four inches maximum. The high side reach is forty-eight inches maximum above the floor for a reach depth of ten inches maximum. Where the reach depth exceeds ten inches, the high side reach is forty-six inches maximum above the floor for a reach depth of twenty-four inches maximum. An exception permits the obstruction height to be thirty-six inches maximum at washing machines and clothes dryers.
