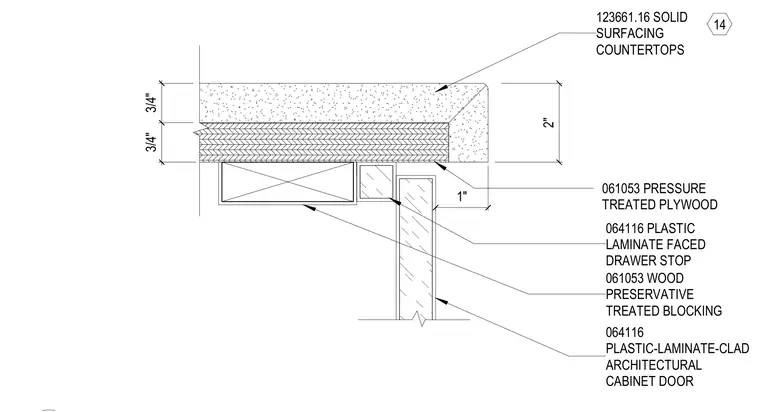

A two-inch solid surfacing countertop rests on a three-quarter-inch pressure-treated plywood substrate supported by wood preservative-treated blocking and plastic-laminate-clad architectural cabinetry. A plastic-laminate-faced drawer stop is integrated below the sub-base adjacent to the cabinet door. Dimensions indicate a three-quarter-inch thickness for the plywood and a one-inch setback for the cabinet construction.
061053 WOOD PRESERVATIVE TREATED BLOCKING 061053 PRESSURE TREATED PLYWOOD 123661.16 SOLID SURFACING COUNTERTOPS 2" 064116 PLASTIC-LAMINATE-CLAD ARCHITECTURAL CABINET DOOR 14 3/4" 3/4" 064116 PLASTIC LAMINATE FACED DRAWER STOP 1"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
