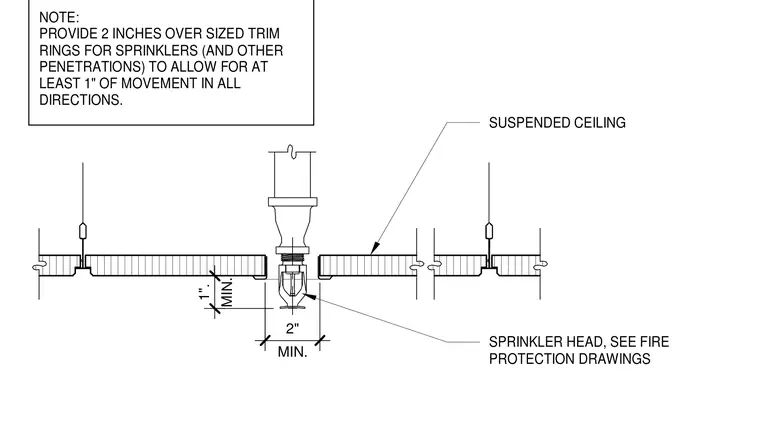

A suspended ceiling accommodates a fire sprinkler head penetration with specific clearance margins. Two-inch oversized trim rings surround the sprinkler and other penetrations to allow for at least one inch of movement in all directions. The installation maintains a minimum two-inch clearance width and a one-inch vertical clearance dimension.
SUSPENDED CEILING SPRINKLER HEAD, SEE FIRE PROTECTION DRAWINGS NOTE: PROVIDE 2 INCHES OVER SIZED TRIM RINGS FOR SPRINKLERS (AND OTHER PENETRATIONS) TO ALLOW FOR AT LEAST 1" OF MOVEMENT IN ALL DIRECTIONS. MIN. 2" MIN. 1".
