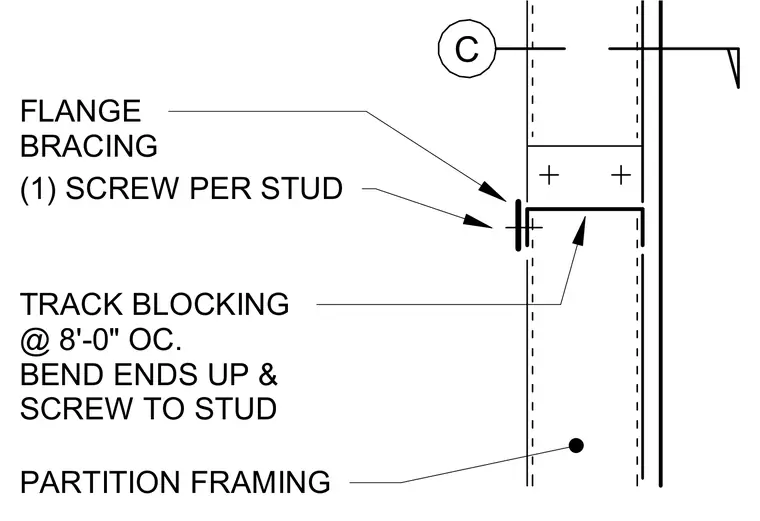

A track blocking assembly is installed within the stud partition framing at eight feet on center. Flange bracing is fastened using one screw per stud. The ends of the blocking are bent up and screwed directly to the stud partition framing.
FLANGE BRACING (1) SCREW PER STUD TRACK BLOCKING @ 8'-0" OC. BEND ENDS UP & SCREW TO STUD PARTITION FRAMING C
