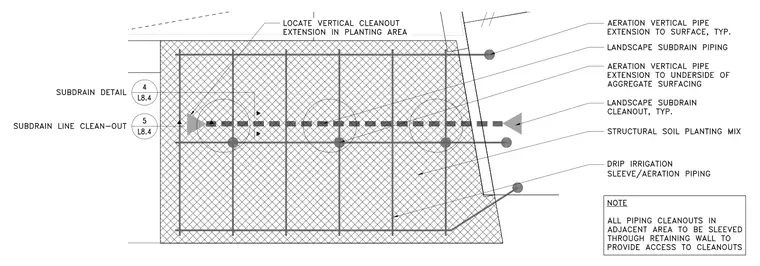

Landscape subdrain piping runs through a structural soil planting mix behind a retaining wall, equipped with typical landscape subdrain cleanouts and drip irrigation sleeve or aeration piping. Aeration vertical pipe extensions extend to the surface and to the underside of aggregate surfacing. All piping cleanouts in the adjacent area sleeve through the retaining wall to provide access to cleanouts as noted. Vertical cleanout extensions are located in the planting area.
