Serving Counter and Wall Work Counter Section Details

About this detail

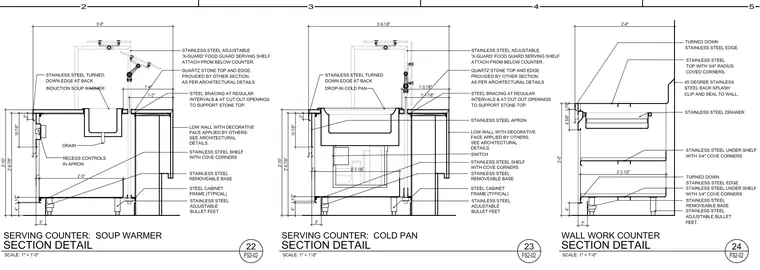

These architectural section details illustrate three food service counter assemblies including a soup warmer serving counter, a cold pan serving counter, and a wall work counter. Each counter features a stainless steel cabinet frame supported by adjustable bullet feet, a removable stainless steel base, and a low wall with decorative face applied by others. The serving counters incorporate a quartz stone top and edge provided by another section, steel bracing at regular intervals and cutout openings, and a stainless steel shelf with cove corners. The soup warmer counter includes an induction soup warmer with a drain and recessed controls in the apron, alongside an adjustable food guard serving shelf attached from below the counter. The cold pan counter features a drop-in cold pan and a similar food guard serving shelf. The wall work counter includes a stainless steel top with a three-quarter inch radius coved corner, a forty-five degree stainless steel backsplash clipped and sealed to the wall, a stainless steel drawer, and two stainless steel under shelves with three-quarter inch cove corners.
