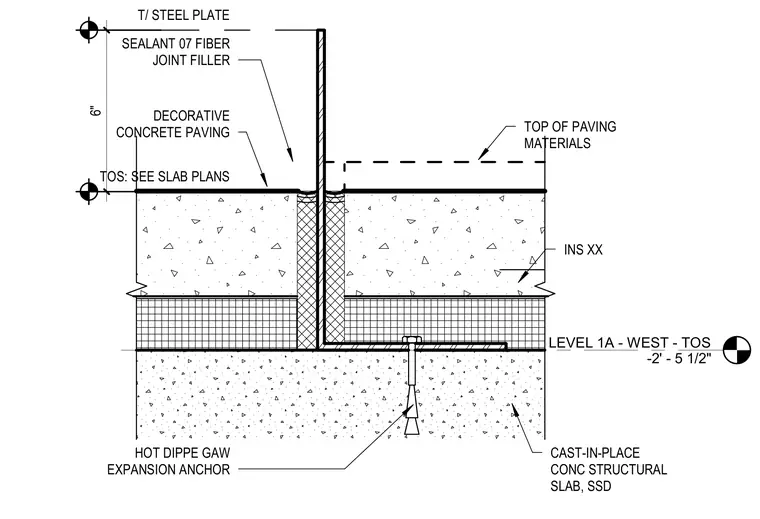

A vertical steel plate extends six inches above the decorative concrete paving to form a curb edge, backed by joint filler and sealant. The paving rests on a structural cast-in-place concrete slab with insulation layers below. A hot-dipped galvanized expansion anchor secures the steel plate assembly directly to the structural slab.
LEVEL 1A - WEST - TOS -2' - 5 1/2" TOS: SEE SLAB PLANS TOP OF PAVING MATERIALS T/ STEEL PLATE SEALANT 07 FIBER JOINT FILLER DECORATIVE CONCRETE PAVING INS XX HOT DIPPE GAW EXPANSION ANCHOR CAST-IN-PLACE CONC STRUCTURAL SLAB, SSD 6"
