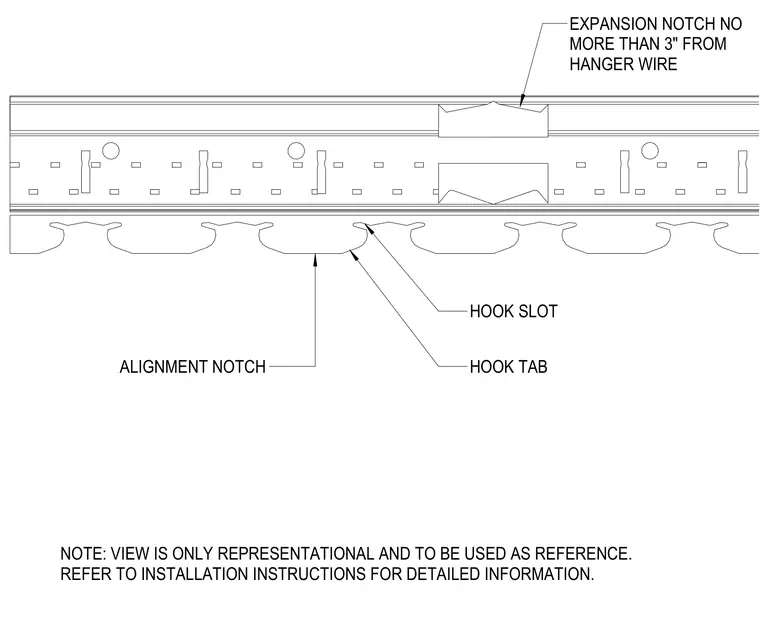

Suspended ceiling runner featuring stamped hook tabs and hook slots for connecting ceiling grid components. Alignment notches maintain proper spacing while an expansion notch is located no more than three inches from the hanger wire to accommodate thermal movement.
ALIGNMENT NOTCH HOOK SLOT HOOK TAB NOTE: VIEW IS ONLY REPRESENTATIONAL AND TO BE USED AS REFERENCE. REFER TO INSTALLATION INSTRUCTIONS FOR DETAILED INFORMATION. EXPANSION NOTCH NO MORE THAN 3" FROM HANGER WIRE
