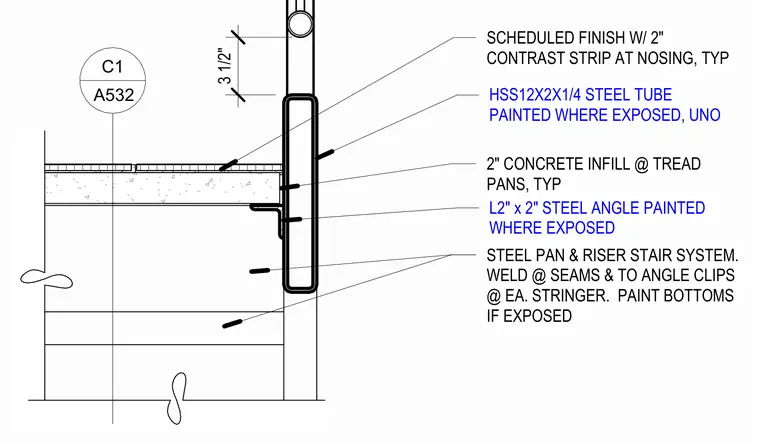

Steel pan and riser stair system featuring a two inch concrete infill at tread pans and a scheduled finish with a two inch contrast strip at the nosing. The tread supports bear on a two by two inch steel angle that is painted where exposed unless noted otherwise. An HSS twelve by two by one quarter inch steel tube acts as the stair stringer and is welded at seams and to angle clips at each stringer, with exposed bottoms painted.
3 1/2" SCHEDULED FINISH W/ 2" CONTRAST STRIP AT NOSING, TYP 2" CONCRETE INFILL @ TREAD PANS, TYP STEEL PAN & RISER STAIR SYSTEM. WELD @ SEAMS & TO ANGLE CLIPS @ EA. STRINGER. PAINT BOTTOMS IF EXPOSED HSS12X2X1/4 STEEL TUBE PAINTED WHERE EXPOSED, UNO L2" x 2" STEEL ANGLE PAINTED WHERE EXPOSED C1 A532
