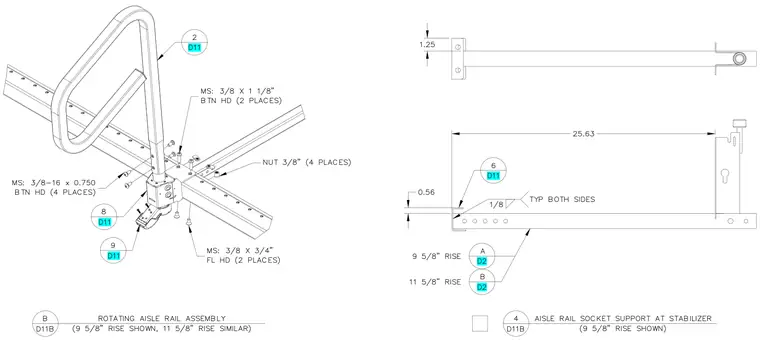

A rotating aisle rail assembly and its associated socket support at a stabilizer. The assembly features a handrail secured by three-eighths by one-and-one-eighth-inch button head machine screws in two places, and three-eighths-sixteen by zero-point-seven-five-inch button head machine screws in four places. Additional connections utilize three-eighths by three-quarter-inch flat head machine screws in two places and three-eighths-inch nuts in four places. The support bracket details include a length of twenty-five point six three inches, a zero-point-five-six-inch dimension, and one-eighth-inch typical welds on both sides. Variations for nine-point-five-eighths-inch and eleven-point-five-eighths-inch rises are indicated.
9 D11 8 D11 MS: 3/8-16 x 0.750 BTN HD (4 PLACES) MS: 3/8 X 1 1/8" BTN HD (2 PLACES) NUT 3/8" (4 PLACES) MS: 3/8 X 3/4" FL HD (2 PLACES) 1/8 TYP BOTH SIDES 0.56 B D2 A D2 9 5/8" RISE 11 5/8" RISE 6 D11 1.25 25.63 AISLE RAIL SOCKET SUPPORT AT STABILIZER 4 D11B (9 5/8" RISE SHOWN) 2 D11 ROTATING AISLE RAIL ASSEMBLY B D11B (9 5/8" RISE SHOWN, 11 5/8" RISE SIMILAR) ( s ( 6 6 6 6 6 6 T 6 6 % % 0 0 6 0 £ 0 6 / 6 6 6 o O O O o o o o
