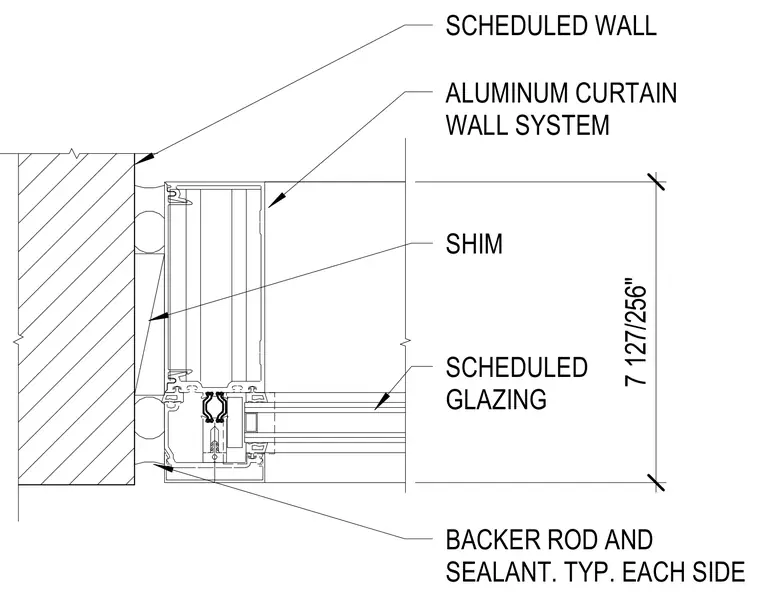

An aluminum curtain wall system interfaces with a scheduled wall utilizing shims and backer rod with sealant typically placed on each side. Scheduled glazing is integrated within the aluminum framing members.
SCHEDULED WALL ALUMINUM CURTAIN WALL SYSTEM SCHEDULED GLAZING BACKER ROD AND SEALANT. TYP. EACH SIDE 7 127/256" SHIM
