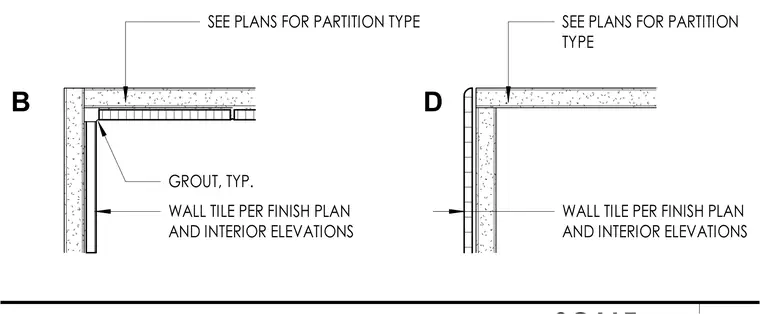

Wall tile corner details showing partition construction and tile finish application at exterior and interior returns. The partition type is sized per the floor plans, with typical grout placement at the internal joint. Wall tile is installed per the finish plan and interior elevations, utilizing rounded corner trim pieces in detail D.
SEE PLANS FOR PARTITION TYPE GROUT, TYP. WALL TILE PER FINISH PLAN AND INTERIOR ELEVATIONS B SEE PLANS FOR PARTITION TYPE WALL TILE PER FINISH PLAN AND INTERIOR ELEVATIONS D
