Architectural · A-A95M5

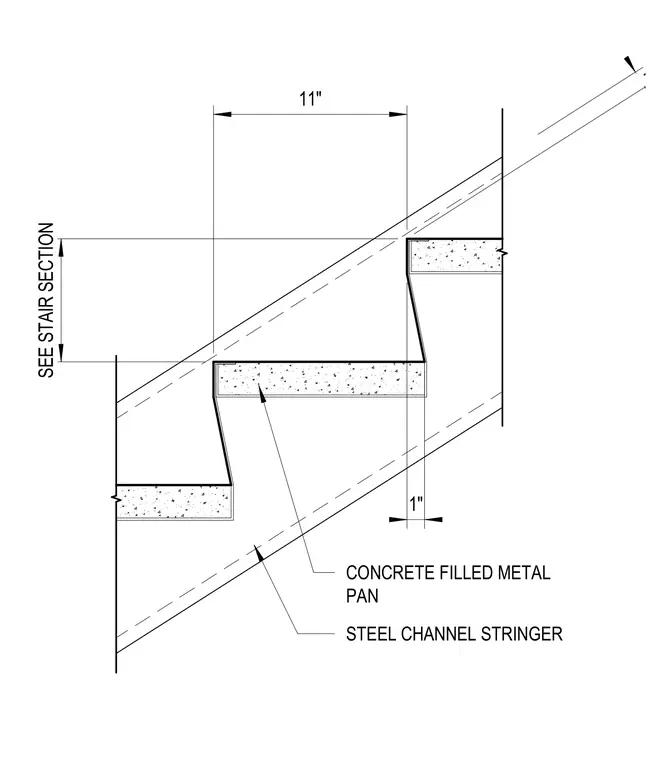

Stair Tread

Scale: SCALE: 1 1/2" = 1'-0"
Units: imperial
Sheet: A503
Discipline: Architectural

Materials

Concrete Metal (misc.)Steel

Elements

Stairs

Text on the drawing

11" SEE STAIR SECTION 1" CONCRETE FILLED METAL PAN STEEL CHANNEL STRINGER 1"

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
