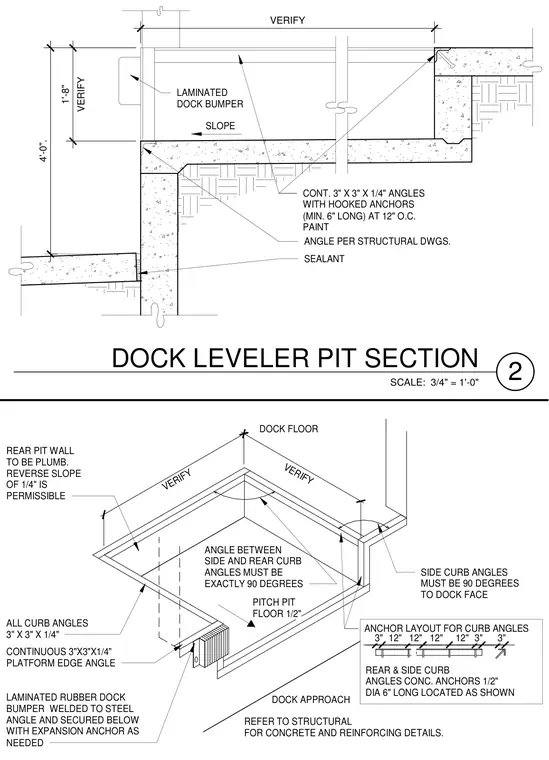

A loading dock leveler pit section and anchor layout features a concrete pit framed with continuous three-inch by three-inch by quarter-inch steel curb angles secured by minimum six-inch long hooked anchors spaced at twelve inches on center. A platform edge angle of the same dimension protects the outer slab corner. A laminated rubber dock bumper is welded to the steel angle and anchored below with an expansion anchor as needed. The pit floor is pitched by half an inch, with side curb angles set precisely ninety degrees to the dock face.
ANCHOR LAYOUT FOR CURB ANGLES DOCK APPROACH REAR & SIDE CURB ANGLES CONC. ANCHORS 1/2" DIA 6" LONG LOCATED AS SHOWN SIDE CURB ANGLES MUST BE 90 DEGREES TO DOCK FACE REFER TO STRUCTURAL FOR CONCRETE AND REINFORCING DETAILS. ANGLE BETWEEN SIDE AND REAR CURB ANGLES MUST BE EXACTLY 90 DEGREES REAR PIT WALL TO BE PLUMB. REVERSE SLOPE OF 1/4" IS PERMISSIBLE ALL CURB ANGLES 3" X 3" X 1/4" CONTINUOUS 3"X3"X1/4" PLATFORM EDGE ANGLE PITCH PIT FLOOR 1/2" LAMINATED RUBBER DOCK BUMPER WELDED TO STEEL ANGLE AND SECURED BELOW WITH EXPANSION ANCHOR AS NEEDED 12" VERIFY VERIFY 12" 12" 12" 3" DOCK FLOOR 3" 3" CONT. 3" X 3" X 1/4" ANGLES WITH HOOKED ANCHORS (MIN. 6" LONG) AT 12" O.C. PAINT LAMINATED DOCK BUMPER ANGLE PER STRUCTURAL DWGS. SLOPE SEALANT VERIFY VERIFY 1'-8" 4'-0". SCALE: 3/4" = 1'-0" 2 DOCK LEVELER PIT SECTION
