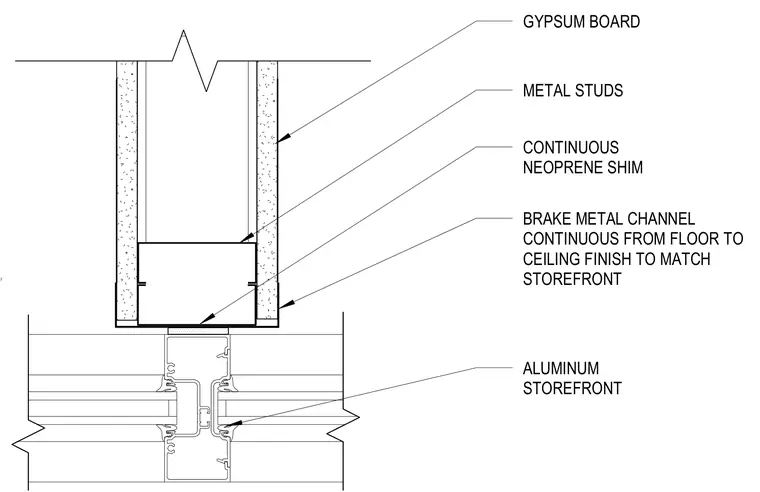

An aluminum storefront system terminates against a gypsum board partition framed with metal studs. A continuous brake metal channel matching the storefront finish wraps the partition end and extends from floor to ceiling. A continuous neoprene shim is placed between the brake metal channel and the head of the aluminum storefront frame.
GYPSUM BOARD METAL STUDS CONTINUOUS NEOPRENE SHIM BRAKE METAL CHANNEL CONTINUOUS FROM FLOOR TO CEILING FINISH TO MATCH STOREFRONT ALUMINUM STOREFRONT
