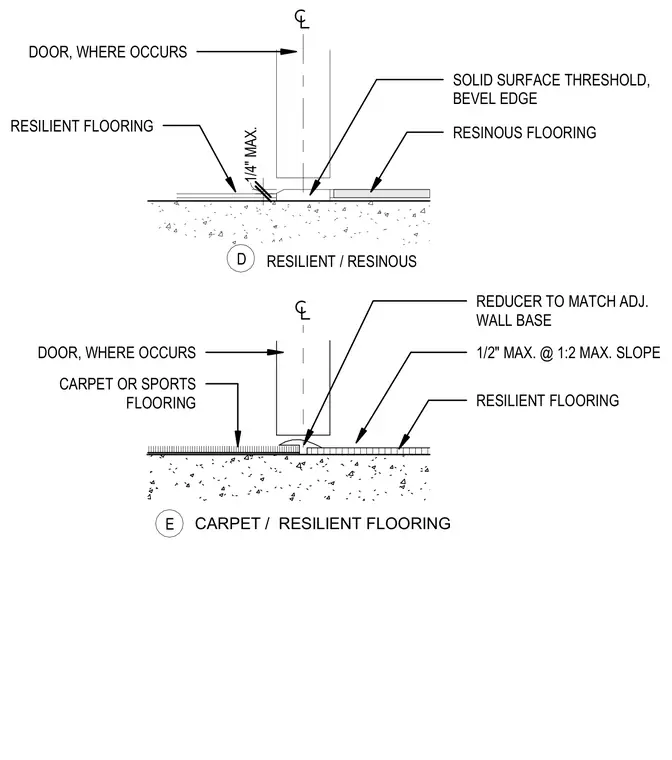

Floor transition details show resilient flooring meeting resinous flooring and carpet at interior door locations. A beveled edge solid surface threshold bridges resilient and resinous flooring with a maximum one-quarter-inch vertical offset. A reducer matching adjacent wall base transitions between carpet or sports flooring and resilient flooring with a maximum half-inch height at a one-to-two slope.
SOLID SURFACE THRESHOLD, BEVEL EDGE RESINOUS FLOORING DOOR, WHERE OCCURS RESILIENT / RESINOUS D RESILIENT FLOORING RESILIENT FLOORING 1/2" MAX. @ 1:2 MAX. SLOPE REDUCER TO MATCH ADJ. WALL BASE CARPET OR SPORTS FLOORING DOOR, WHERE OCCURS CARPET / RESILIENT FLOORING E 1/4" MAX.
