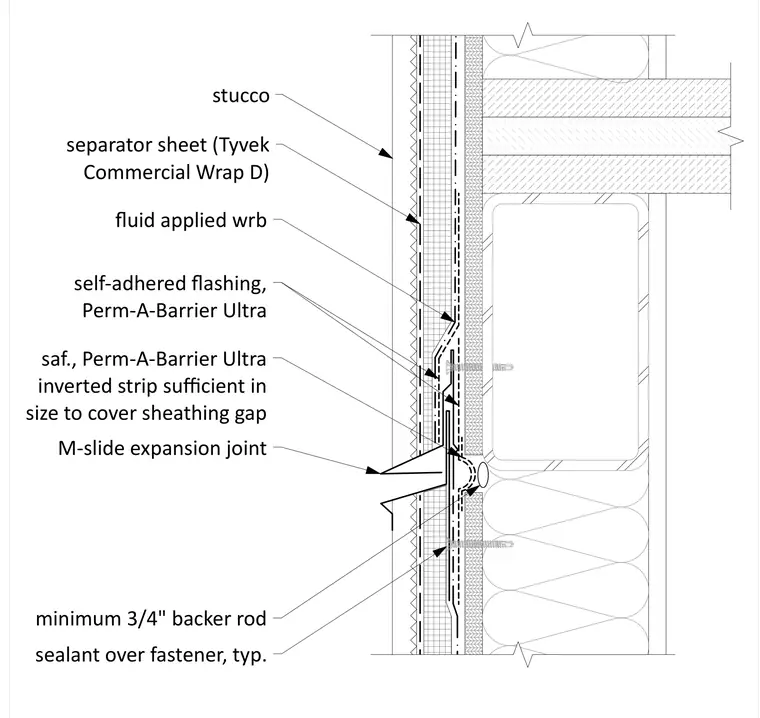

An exterior wall assembly featuring a stucco finish over a separator sheet of Tyvek Commercial Wrap D and a fluid-applied weather-resistive barrier. A Perm-A-Barrier Ultra self-adhered flashing strip is inverted and sized to cover the sheathing gap at the movement joint. An M-slide expansion joint accommodates structural deflection, backed by a minimum three-quarter-inch backer rod and sealant placed over fasteners.
self-adhered flashing, Perm-A-Barrier Ultra fluid applied wrb separator sheet (Tyvek Commercial Wrap D) stucco saf., Perm-A-Barrier Ultra inverted strip sufficient in size to cover sheathing gap minimum 3/4" backer rod sealant over fastener, typ. M-slide expansion joint
