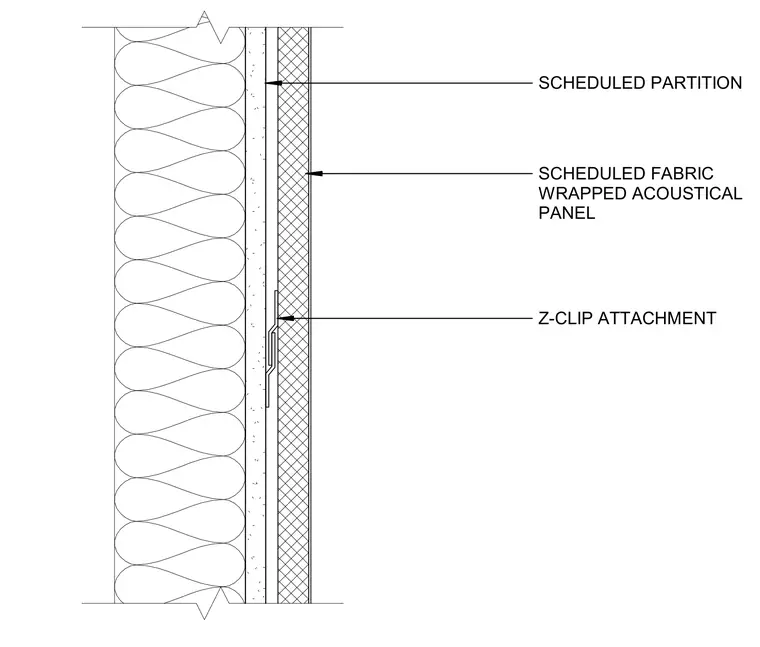

A scheduled fabric wrapped acoustical panel is secured to a scheduled partition using a Z-clip attachment. The assembly incorporates acoustic paneling fastened directly to the interior wall framing.
