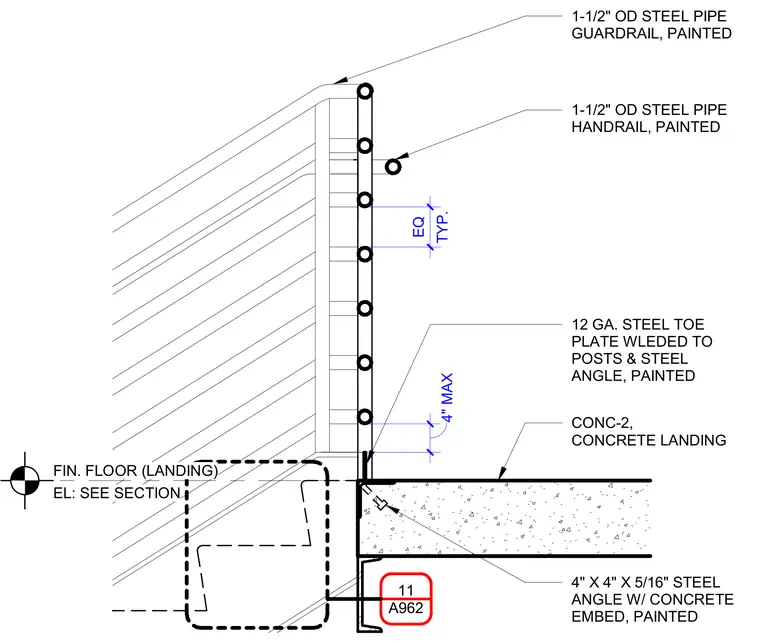

A 1-1/2 inch outside diameter painted steel pipe guardrail and handrail assembly terminates at a concrete landing. The posts anchor to a 4 inch by 4 inch by 5/16 inch painted steel angle with concrete embedment cast into the concrete landing slab. A 12 gauge painted steel toe plate is welded to the posts and the steel angle. Spacing for intermediate rails is set at equal intervals with a 4 inch maximum clearance at the base.
A962 11 4" MAX TYP. EQ 1-1/2" OD STEEL PIPE HANDRAIL, PAINTED 12 GA. STEEL TOE PLATE WLEDED TO POSTS & STEEL ANGLE, PAINTED CONC-2, CONCRETE LANDING 4" X 4" X 5/16" STEEL ANGLE W/ CONCRETE EMBED, PAINTED 1-1/2" OD STEEL PIPE GUARDRAIL, PAINTED FIN. FLOOR (LANDING) EL: SEE SECTION
