Architectural · A-A8BG7

Entry Wing Wall Plan Detail with Expansion Joint and Window Integration

Materials

Steel Cold-formed Steel Timber / Wood Stone Glass / Glazing Aluminum Metal (misc.)

Elements

Walls Windows Stem Walls Expansion / Control Joints Waterproofing / Flashing Insulation Entrances Roof / Floor Openings

Connections

Expansion / Slip Connection

About this detail

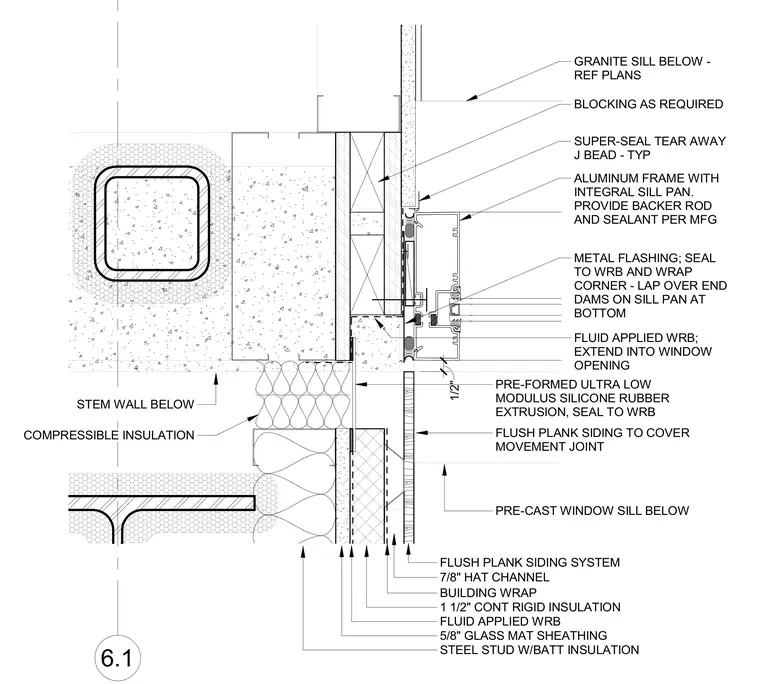

The junction at an entry wing wall incorporates cold-formed steel framing and exterior finishes. The wall assembly consists of 6 1/2-inch steel studs with batt insulation, five-eighths-inch glass mat exterior gypsum sheathing, a fluid-applied water-resistive barrier, one and one-half inches of continuous rigid insulation, building wrap, seven-eighths-inch hat channels, and a flush plank siding system. A movement joint is incorporated with a pre-formed ultra-low modulus silicone rubber extrusion sealed to the water-resistive barrier and covered by the flush plank siding. The window interface features an aluminum frame with an integral sill pan, metal flashing sealed to the water-resistive barrier with corner end dams, compressible insulation, and a granite sill below supported by blocking and backup sealant.
