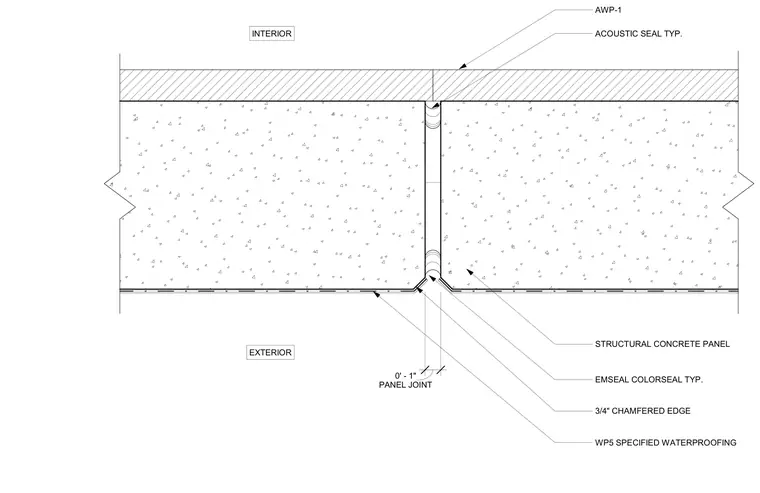

Two structural concrete panels meet at an in-line vertical joint measuring one inch wide. The exterior side of the joint is sealed with an Emseal Colorseal sealant and backed by a specified WP5 waterproofing membrane, with a three-quarter-inch chamfered edge formed on the panel corner. The interior side of the joint receives an acoustic seal and an AWP-1 accessory or waterproofing detail.
3/4" CHAMFERED EDGE INTERIOR EXTERIOR STRUCTURAL CONCRETE PANEL EMSEAL COLORSEAL TYP. ACOUSTIC SEAL TYP. WP5 SPECIFIED WATERPROOFING AWP-1 PANEL JOINT 0' - 1"
