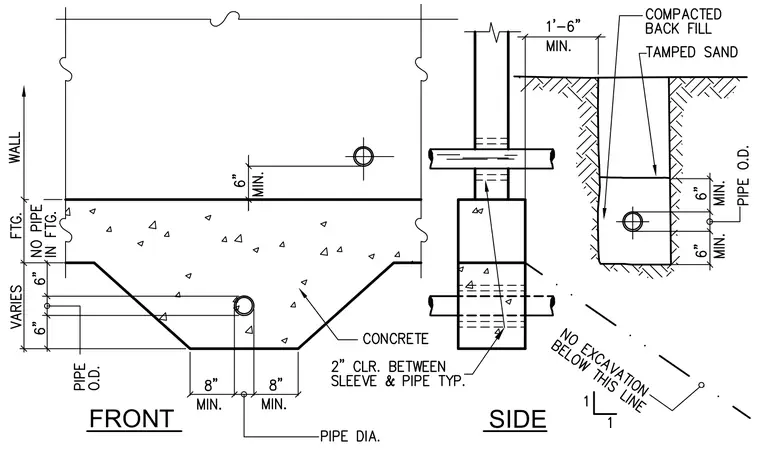

A pipe penetrates through a concrete wall and footing with a two-inch clearance maintained between the sleeve and pipe typically. The foundation wall sits atop a concrete footing requiring no pipe penetration within the footing proper, maintaining a six-inch minimum clearance from the footing edge. Side views indicate compacted backfill and tamped sand surrounding the utility line, with a minimum one-foot-six-inch dimension to adjacent soil and a specific note indicating no excavation below the established line.
