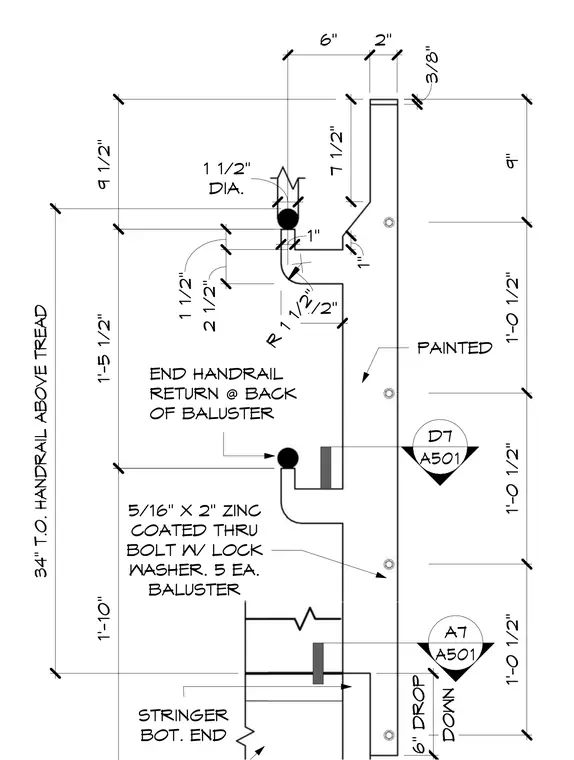

A painted stair landing guardrail and baluster assembly connects to the stair stringer bottom end. The handrail features a 1-1/2 inch diameter profile with an end handrail return located at the back of the baluster. Five each balusters are secured using 5/16-inch by 2-inch zinc-coated thru bolts with lock washers. The top of the handrail is set at 34 inches above the tread with a 6-inch drop down.
6" 2" 9 1/2" DIA. 1 1/2" 2 1/2" 1 1/2" 4 1/2" 1" 3/8" 9" 1'-0 1/2" 1'-0 1/2" 1'-0 1/2" 5/16" X 2" ZINC COATED THRU BOLT W/ LOCK WASHER. 5 EA. BALUSTER 1" 7 1/2" R 1 1/2" STRINGER BOT. END A7 A501 1'-5 1/2" D7 A501 1'-10" DOWN 6" DROP 34" T.O. HANDRAIL ABOVE TREAD END HANDRAIL RETURN @ BACK OF BALUSTER PAINTED
