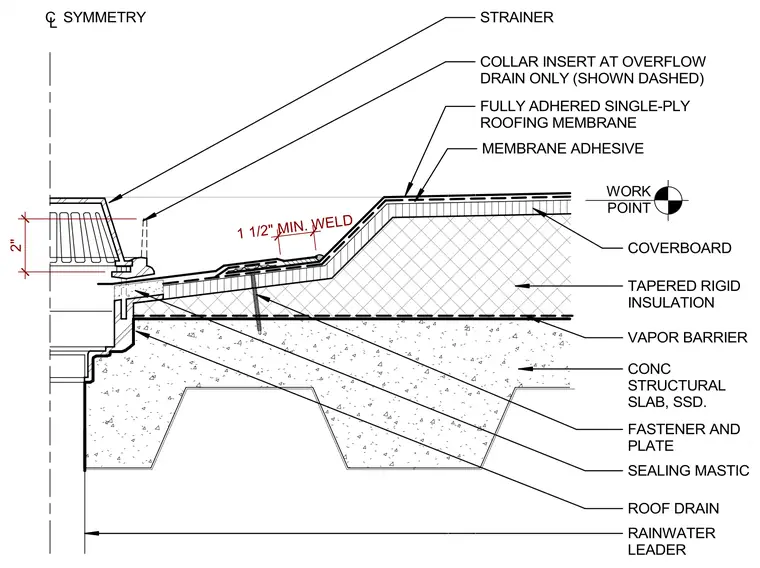

A roof drain assembly is set into a concrete structural slab with a rainwater leader and a strainer centered on a line of symmetry. A collar insert is included at the overflow drain only and shown dashed. Tapered rigid insulation and a coverboard sit above a vapor barrier and the concrete structural slab. A fully adhered single-ply roofing membrane is applied over the insulation with membrane adhesive, secured with a fastener and plate, and sealed with sealing mastic. A one and a half inch minimum weld connects the drain components.
STRAINER ROOF DRAIN RAINWATER LEADER CL SYMMETRY COVERBOARD CONC STRUCTURAL SLAB, SSD. COLLAR INSERT AT OVERFLOW DRAIN ONLY (SHOWN DASHED) TAPERED RIGID INSULATION 2" FULLY ADHERED SINGLE-PLY ROOFING MEMBRANE POINT WORK 1 1/2" MIN. WELD FASTENER AND PLATE SEALING MASTIC MEMBRANE ADHESIVE VAPOR BARRIER
