A-A7WCS — Tunnel Section

Architectural · A-A7WCS

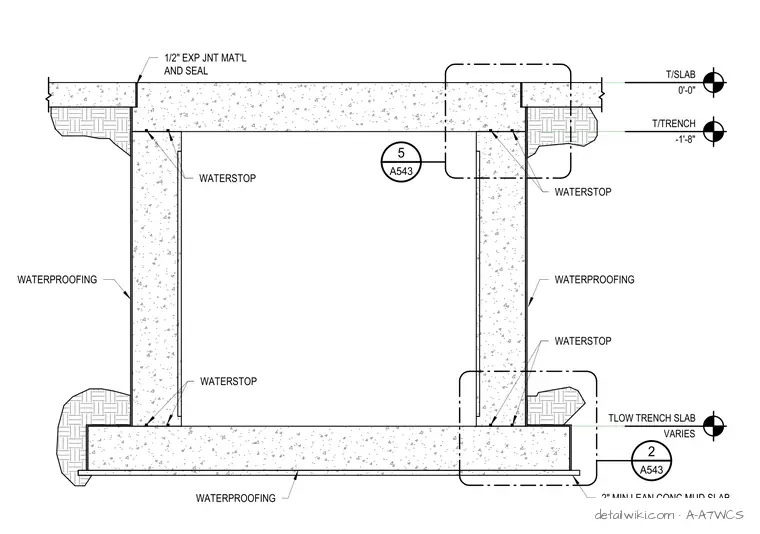

Tunnel Section

Scale: SCALE: 3/8" = 1'-0"
Units: imperial
Sheet: A543
Discipline: Architectural

Materials

Elements

Floors / Slabs Waterproofing / Flashing

Text on the drawing

WATERSTOP WATERPROOFING WATERSTOP 2" MIN LEAN CONC MUD SLAB WATERPROOFING WATERPROOFING WATERSTOP T/TRENCH -1'-8" T/SLAB 0'-0" TLOW TRENCH SLAB VARIES WATERSTOP 1/2" EXP JNT MAT'L AND SEAL A543 2 A543 5
