An exterior steel stair base assembly features a painted steel stringer supporting galvanized bar grated pans with closed risers. A galvanized steel end plate and clip are welded to the stringer at the bottom riser return. A pipe handrail and guardrail, painted to match CO02, connects to the assembly with all welds ground smooth. A contrasting stair nosing is provided on the treads, maintaining standard tread and clearance dimensions.

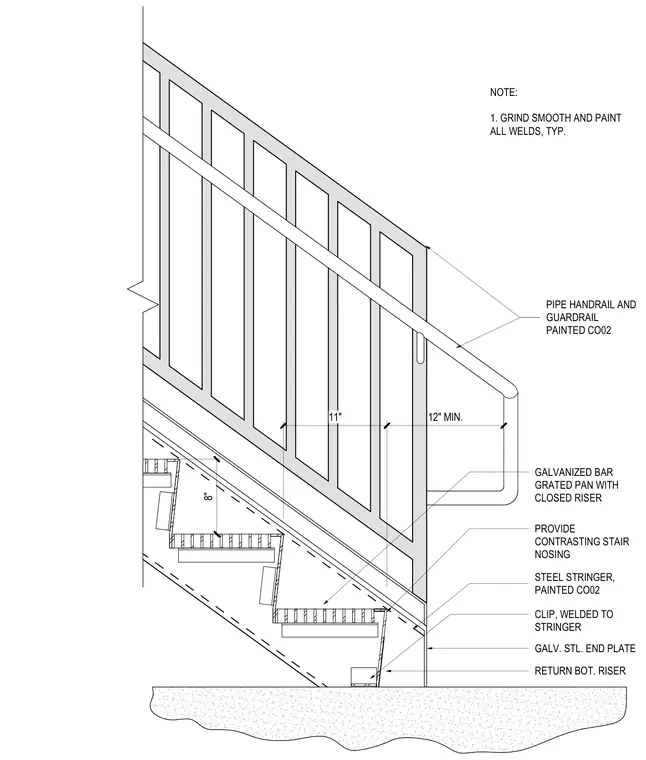

PIPE HANDRAIL AND GUARDRAIL PAINTED CO02 NOTE: 1. GRIND SMOOTH AND PAINT ALL WELDS, TYP. GALV. STL. END PLATE CLIP, WELDED TO STRINGER RETURN BOT. RISER STEEL STRINGER, PAINTED CO02 GALVANIZED BAR GRATED PAN WITH CLOSED RISER 11" 12" MIN. 8" PROVIDE CONTRASTING STAIR NOSING
