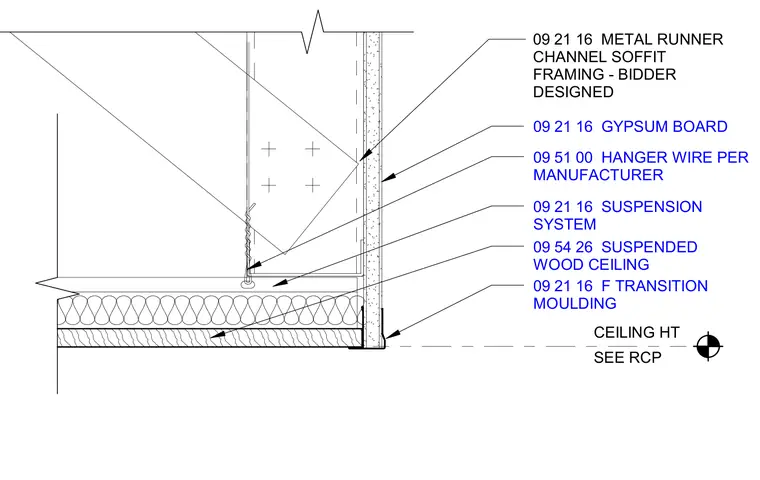

Junction between a suspended wood ceiling system and a gypsum board ceiling soffit. The assembly utilizes hanger wires installed per the manufacturer recommendations to support the suspension system. A metal runner channel provides framing for the soffit, noted as bidder designed. An F transition moulding finishes the edge where the suspended wood ceiling meets the gypsum board wall finish.
09 21 16 F TRANSITION MOULDING 09 21 16 GYPSUM BOARD CEILING HT SEE RCP 09 21 16 METAL RUNNER CHANNEL SOFFIT FRAMING - BIDDER DESIGNED 09 21 16 SUSPENSION SYSTEM 09 54 26 SUSPENDED WOOD CEILING 09 51 00 HANGER WIRE PER MANUFACTURER
