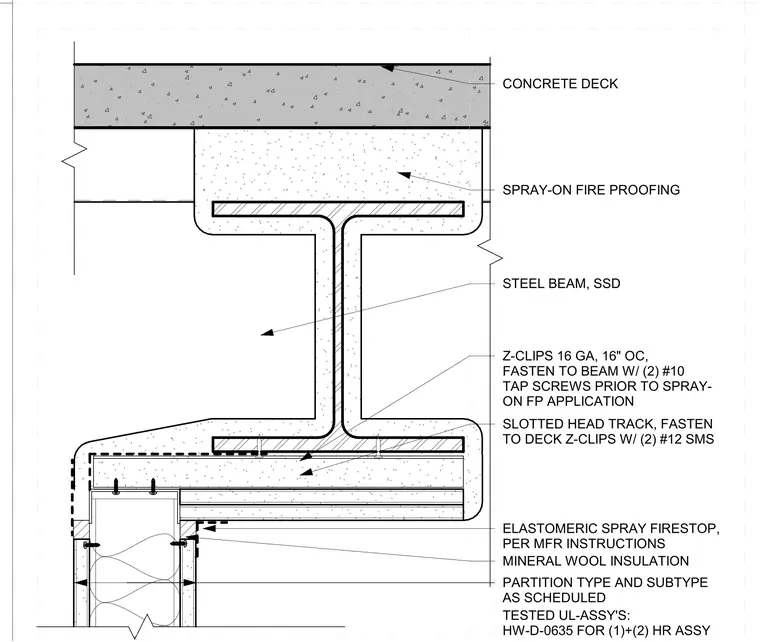

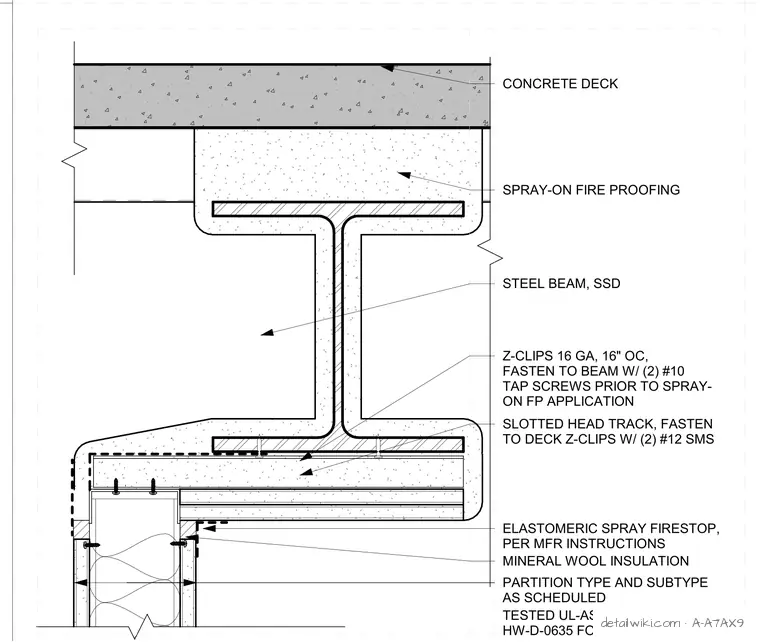

A slotted head track is secured to deck Z-clips with two number twelve sheet metal screws beneath a concrete deck and structural steel beam. Sixteen gauge Z-clips are spaced at sixteen inches on center and fastened to the beam web with two number ten self-tapping screws prior to spray-on fireproofing application. Mineral wool insulation fills the head assembly, protected by an elastomeric spray firestop installed per manufacturer instructions to satisfy tested UL assemblies HW-D-0635 for one and two-hour ratings. A partition type and subtype as scheduled completes the interior side of the assembly.
SLOTTED HEAD TRACK, FASTEN TO DECK Z-CLIPS W/ (2) #12 SMS SPRAY-ON FIRE PROOFING CONCRETE DECK PARTITION TYPE AND SUBTYPE AS SCHEDULED ELASTOMERIC SPRAY FIRESTOP, PER MFR INSTRUCTIONS TESTED UL-ASSY'S: HW-D-0635 FOR (1)+(2) HR ASSY MINERAL WOOL INSULATION Z-CLIPS 16 GA, 16" OC, FASTEN TO BEAM W/ (2) #10 TAP SCREWS PRIOR TO SPRAY- ON FP APPLICATION STEEL BEAM, SSD
