Architectural · A-A7AC5

Composite Metal Wall Panel Assembly

Materials

Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Walls Partitions Facades / Cladding Insulation

Connections

Shear Stud / Composite

About this detail

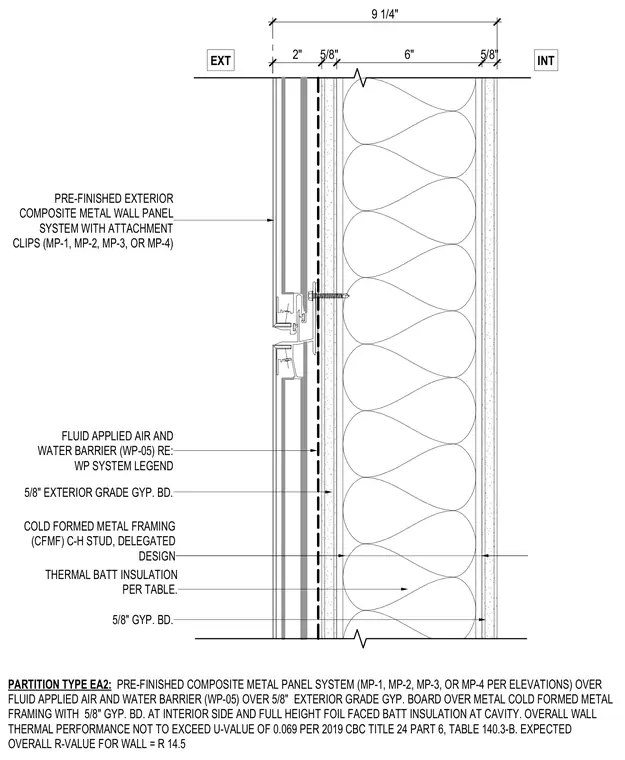

Partition type EA2 consists of a pre-finished exterior composite metal panel system with attachment clips, installed over a fluid-applied air and water barrier designated WP-05. The backing substrate is a 5/8-inch exterior grade gypsum board attached to cold-formed metal framing, which features a C-H stud design with full-height foil-faced thermal batt insulation in the cavity. The interior side of the metal stud framing is finished with a 5/8-inch gypsum board. The overall wall assembly has a 9-1/4-inch total thickness, a thermal performance not exceeding a U-value of 0.069 per 2019 CBC Title 24, and an expected overall R-value of R-14.5.
