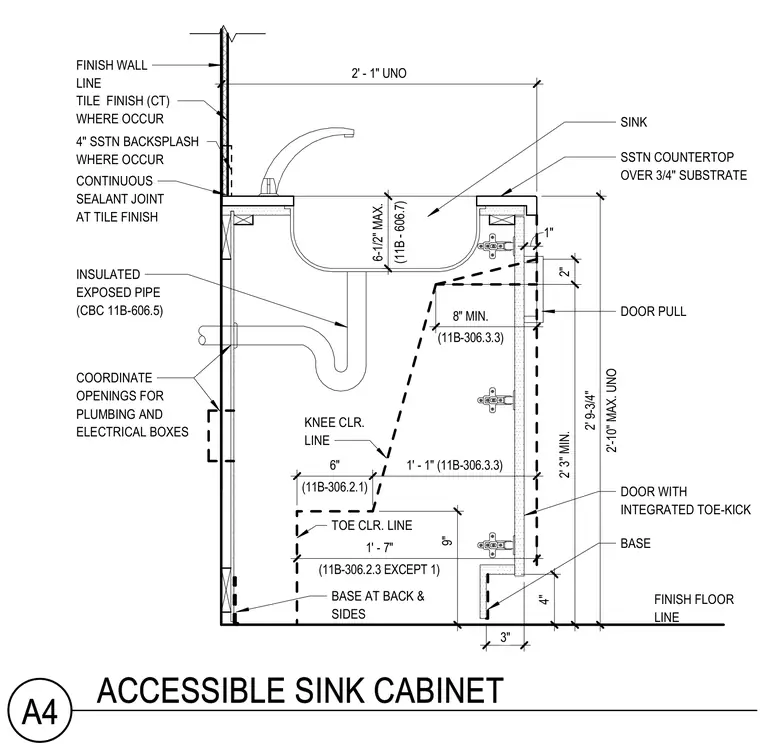

An accessible sink cabinet assembly features a stainless steel countertop over a three-quarter-inch substrate with an integral stainless steel backsplash and tile finish at the finish wall line. A continuous sealant joint seals the intersection at the tile finish, while insulated exposed pipes comply with accessibility standards. The millwork includes doors with integrated toe-kicks, a base finish at the back and sides, and coordinated rough-ins for plumbing and electrical boxes. Dimensions indicate mandatory knee and toe clearance zones, with a maximum rim height and specific vertical clearances above the finish floor line.
2' - 1" UNO (11B-306.2.1) 6" 1' - 1" (11B-306.3.3) 9" (11B-306.2.3 EXCEPT 1) 1' - 7" 3" 2' 3" MIN. 2" 2'-10" MAX. UNO 2' 9-3/4" 1" (11B-306.3.3) 8" MIN. (11B - 606.7) 6-1/2" MAX. TILE FINISH (CT) WHERE OCCUR CONTINUOUS SEALANT JOINT AT TILE FINISH SINK SSTN COUNTERTOP OVER 3/4" SUBSTRATE DOOR WITH INTEGRATED TOE-KICK BASE FINISH FLOOR LINE TOE CLR. LINE BASE AT BACK & SIDES KNEE CLR. LINE INSULATED EXPOSED PIPE (CBC 11B-606.5) COORDINATE OPENINGS FOR PLUMBING AND ELECTRICAL BOXES 4" FINISH WALL LINE DOOR PULL 4" SSTN BACKSPLASH WHERE OCCUR A4 ACCESSIBLE SINK CABINET
