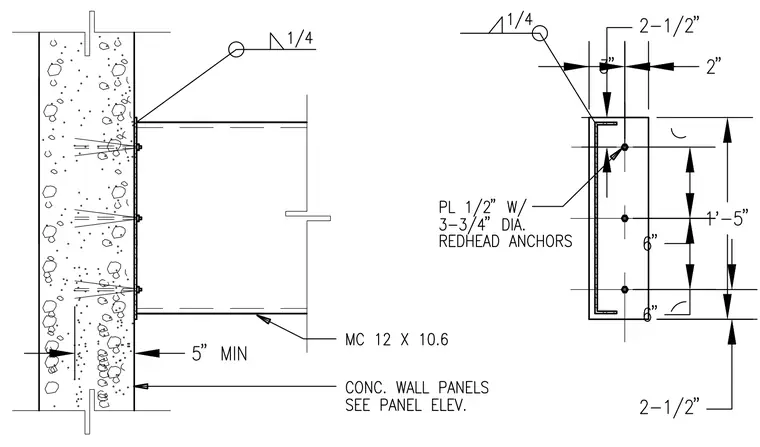

An MC 12 x 10.6 channel connects to a concrete wall panel measuring five inches minimum thickness. The connection uses a one-half-inch steel plate secured by three three-quarter-inch diameter Red Head anchors. A one-quarter-inch fillet weld joins the channel to the plate. Dimensions specify a two-and-one-half-inch edge distance and six-inch vertical spacing between anchors.
