A pipe penetrates through the concrete stem wall and beneath the bottom of the footing with a typical two-inch clearance. For pipes located three feet or less below the footing, a sleeve and concrete are provided as shown. For pipes located more than three feet below the footing, backfill over the pipe is compacted to ninety percent as approved by the soils engineer or a stepped footing is used below the pipe. Sleeves are sized two inches larger than the outside diameter of the pipes.

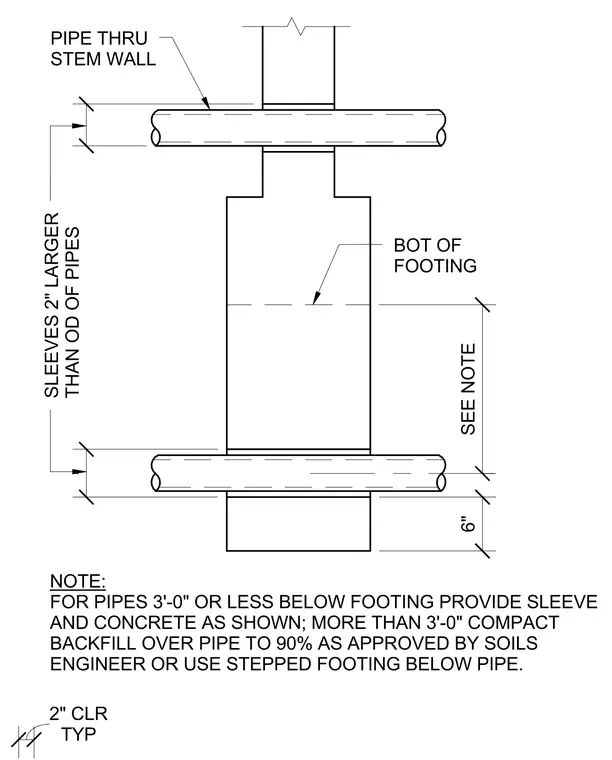

TYP 2" CLR PIPE THRU STEM WALL BOT OF FOOTING NOTE: FOR PIPES 3'-0" OR LESS BELOW FOOTING PROVIDE SLEEVE AND CONCRETE AS SHOWN; MORE THAN 3'-0" COMPACT BACKFILL OVER PIPE TO 90% AS APPROVED BY SOILS ENGINEER OR USE STEPPED FOOTING BELOW PIPE. 6" . . SLEEVES 2" LARGER THAN OD OF PIPES SEE NOTE
