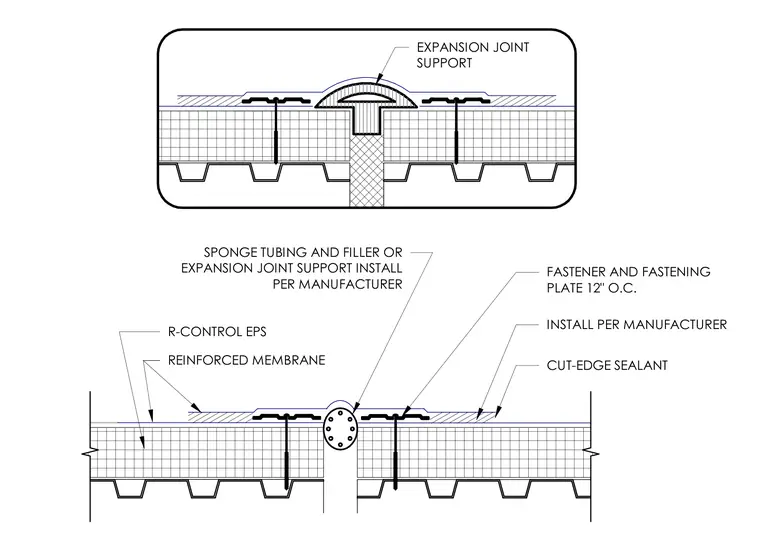

This assembly bridges a building expansion joint over metal decking using a central expansion joint support and sponge tubing or filler installed per the manufacturer. R-Control EPS insulation fills the assembly below a reinforced waterproofing membrane. Fasteners and fastening plates secure the membrane edges twelve inches on center, finished with cut-edge sealant.
EXPANSION JOINT SUPPORT SPONGE TUBING AND FILLER OR EXPANSION JOINT SUPPORT INSTALL PER MANUFACTURER FASTENER AND FASTENING PLATE 12" O.C. INSTALL PER MANUFACTURER CUT-EDGE SEALANT R-CONTROL EPS REINFORCED MEMBRANE 225552= 20015 20505a o o o) , o ‘O o o V o
