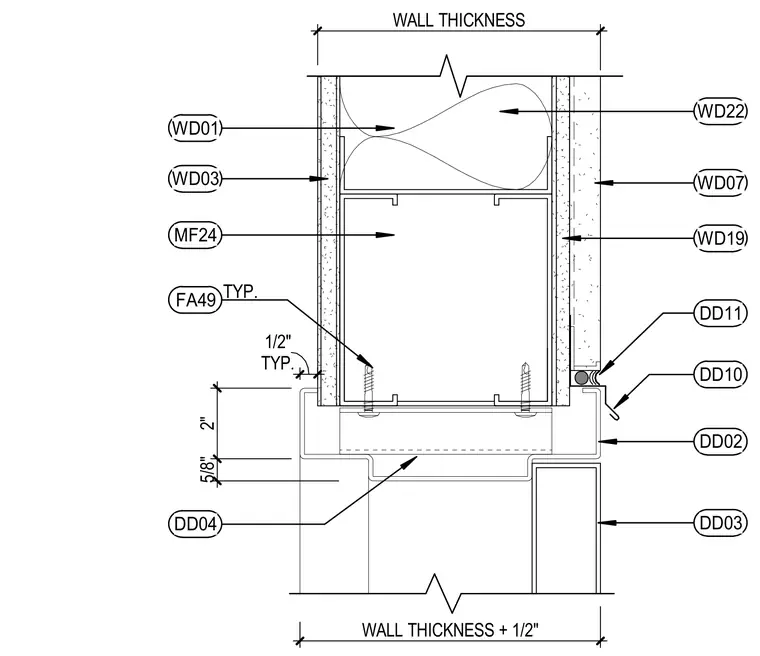

An exterior hollow metal door head assembly integrates with a framed wall finished in plaster and stucco. The hollow metal frame is secured with fasteners through the jamb and header sections, maintaining a wall thickness dimension plus a one-half-inch tolerance. Weatherstripping and sealant are applied at the exterior door stop transition to seal the opening against moisture intrusion.
TYP. 1/2" MF24 WD03 2" 5/8" WALL THICKNESS DD11 DD10 WD19 WD07 WD01 WD22 TYP. FA49 DD04 DD02 DD03 WALL THICKNESS + 1/2"
