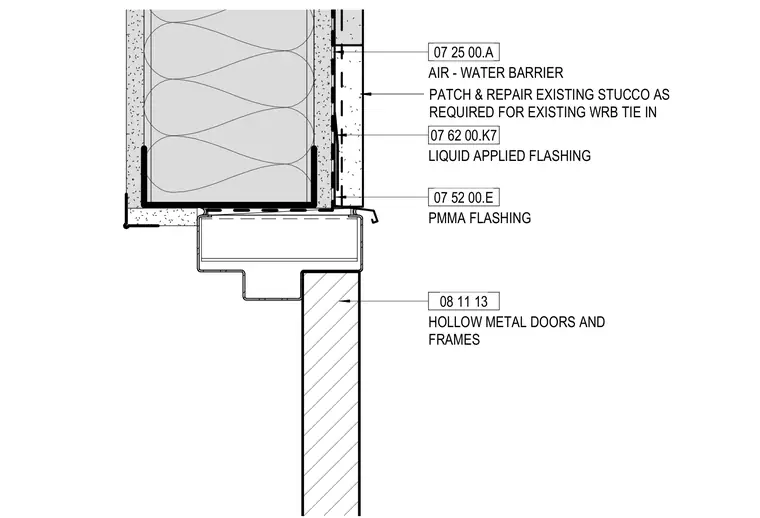

This wall head detail shows a hollow metal door frame installed beneath an existing stucco wall assembly. The junction integrates an air and water barrier tied into the existing weather-resistive barrier, with patched and repaired existing stucco as required. Liquid-applied flashing and PMMA flashing provide continuous waterproofing protection above the hollow metal head member.
07 25 00.A AIR - WATER BARRIER 07 62 00.K7 LIQUID APPLIED FLASHING 07 52 00.E PMMA FLASHING 08 11 13 HOLLOW METAL DOORS AND FRAMES PATCH & REPAIR EXISTING STUCCO AS REQUIRED FOR EXISTING WRB TIE IN
