The roof assembly consists of a 5 1/8 inch thick F10-5 mass ply panel supporting a tapered rigid insulation layer and a 1/2 inch cover board. A fully adhered TPO roof membrane provides weatherproofing, meeting minimum Class B fire classification per Table 1505.1 and sloped to drain. One layer of 5/8 inch Type X gypsum board is attached directly to the underside of the mass ply panel using Type S drywall screws.

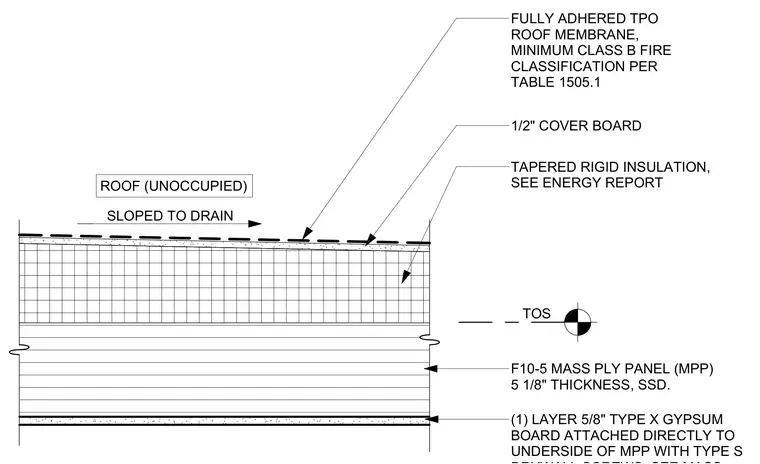

FULLY ADHERED TPO ROOF MEMBRANE, MINIMUM CLASS B FIRE CLASSIFICATION PER TABLE 1505.1 1/2" COVER BOARD TAPERED RIGID INSULATION, SEE ENERGY REPORT ROOF (UNOCCUPIED) SLOPED TO DRAIN TOS F10-5 MASS PLY PANEL (MPP) 5 1/8" THICKNESS, SSD. (1) LAYER 5/8" TYPE X GYPSUM BOARD ATTACHED DIRECTLY TO UNDERSIDE OF MPP WITH TYPE S
