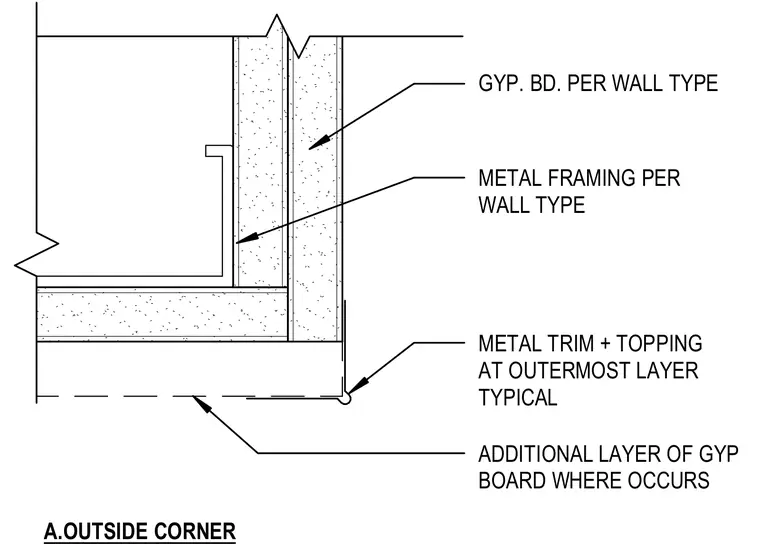

Metal framing per wall type supports inner and outer layers of gypsum board configured for acoustical performance. An additional layer of gypsum board is added at the outside corner where specified. A metal trim with a topping piece finishes the outermost layer at the exterior corner.
GYP. BD. PER WALL TYPE METAL FRAMING PER WALL TYPE METAL TRIM + TOPPING AT OUTERMOST LAYER TYPICAL A.OUTSIDE CORNER ADDITIONAL LAYER OF GYP BOARD WHERE OCCURS
