Architectural · A-A694T

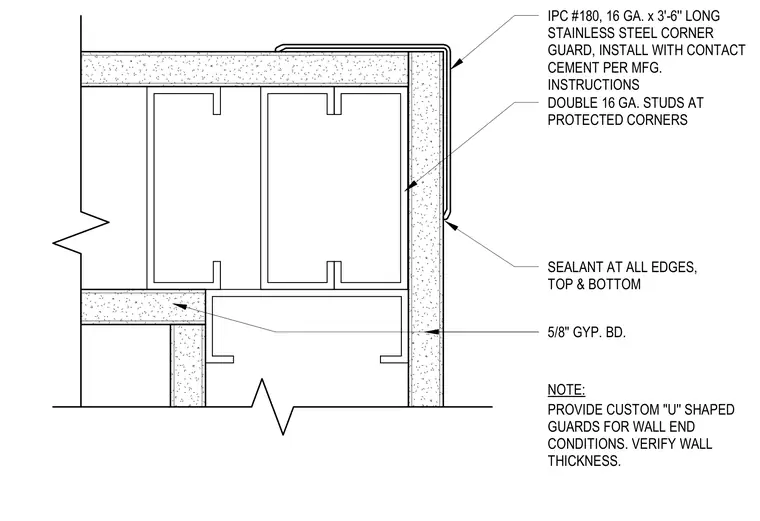

Custom U-Shaped Stainless Steel Corner Guard at Gypsum Wall End

Materials

Elements

About this detail

A custom 16-gauge stainless steel corner guard, model IPC #180 and three feet six inches long, wraps the outside corner of a partition wall and is secured with contact cement per manufacturer instructions. The corner framing consists of double 16-gauge steel studs supporting five-eighths-inch gypsum board on each side. Sealant is applied at all edges, top and bottom of the guard. Wall end conditions require verification of overall wall thickness.
