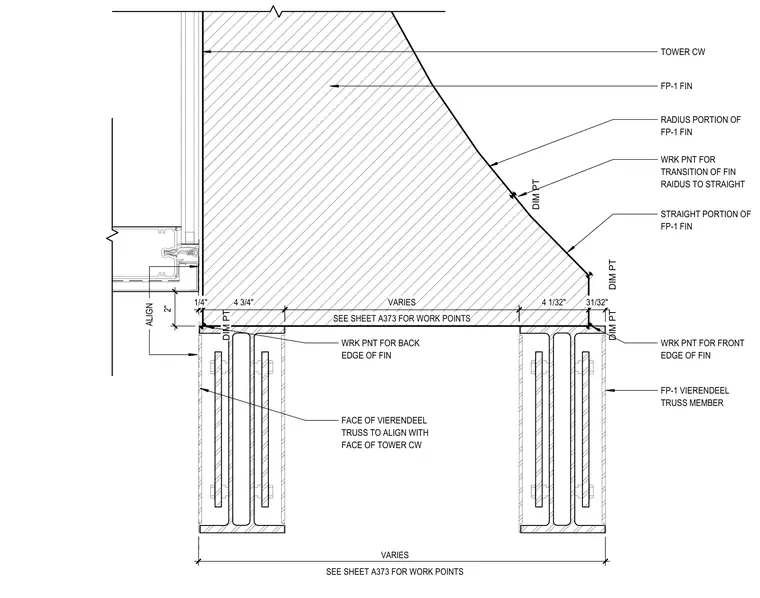

An architectural fin and tower curtain wall intersect with a Vierendeel truss member. The face of the Vierendeel truss aligns with the face of the tower curtain wall. The FP-1 fin features both radius and straight portions defined by precise work points and dimensions, including a two-inch vertical offset and varied spacing indicated for work points on sheet A373. Dimension points govern the front and back edges of the fin relative to the supporting structural members.
2 " S E E S H E E T A 3 7 3 F O R W O R K P O I N T S V A R I E S S E E S H E E T A 3 7 3 F O R W O R K P O I N T S V A R I E S DIM PT DIM PT TOWER CW FP-1 FIN FP-1 VIERENDEEL TRUSS MEMBER DIM PT DIM PT STRAIGHT PORTION OF FP-1 FIN RADIUS PORTION OF FP-1 FIN WRK PNT FOR TRANSITION OF FIN RAIDUS TO STRAIGHT WRK PNT FOR FRONT EDGE OF FIN WRK PNT FOR BACK EDGE OF FIN 1 / 4 " 4 3 / 4 " 4 1 / 3 2 " 3 1 / 3 2 " FACE OF VIERENDEEL TRUSS TO ALIGN WITH FACE OF TOWER CW ALIGN
