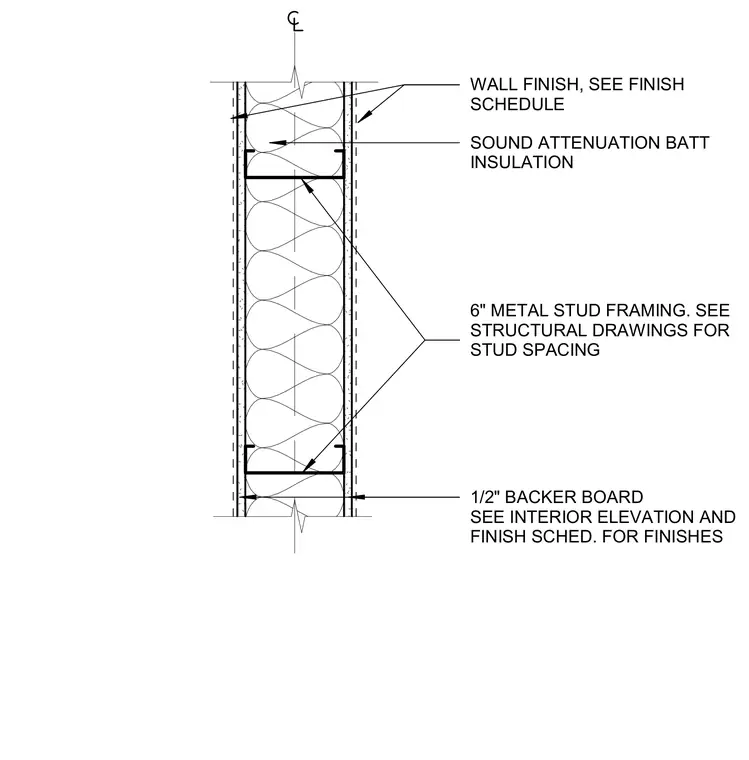

The assembly consists of six-inch cold-formed metal stud framing with stud spacing coordinated per structural drawings. Sound attenuation batt insulation fills the cavity between the studs. Each side receives a half-inch backer board and a finish layer specified in the finish schedule.
6" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING 1/2" BACKER BOARD SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES SOUND ATTENUATION BATT INSULATION WALL FINISH, SEE FINISH SCHEDULE
