An aluminum curtain wall system incorporates insulated glazing units with exterior applied mullion caps at a building corner. The framing members maintain standard profile depths with insulated glazing types specified per exterior elevations.

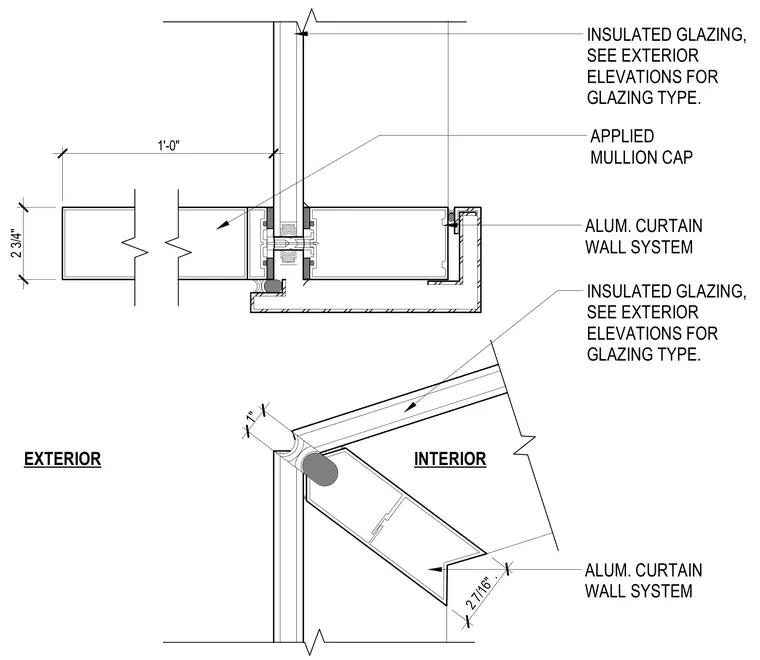

1'-0" 2 3/4" ALUM. CURTAIN WALL SYSTEM INSULATED GLAZING, SEE EXTERIOR ELEVATIONS FOR GLAZING TYPE. APPLIED MULLION CAP EXTERIOR INTERIOR 1" 2 7/16" . ALUM. CURTAIN WALL SYSTEM INSULATED GLAZING, SEE EXTERIOR ELEVATIONS FOR GLAZING TYPE.
