Architectural · A-A5QR8

Aluminum Plate Bracket and Fin Connection at Curtain Wall Mullion

Materials

Elements

Millwork / Casework Connections / Plates

About this detail

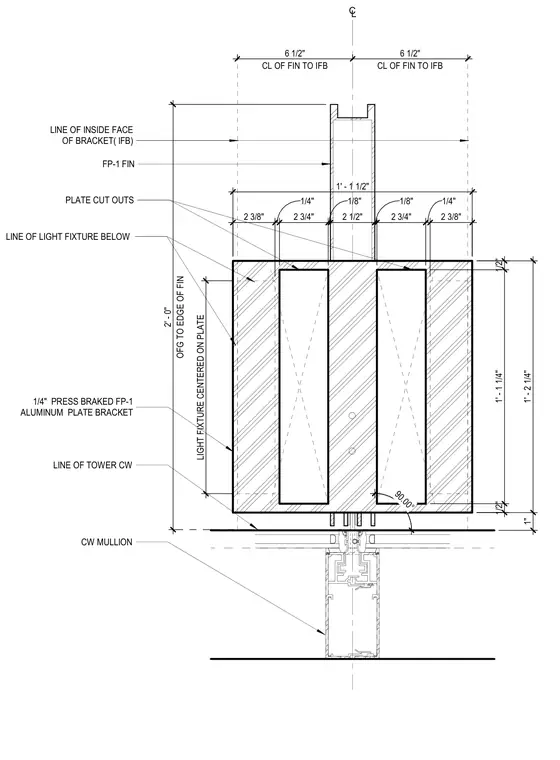

This plan detail shows a one-quarter-inch press braked FP-1 aluminum plate bracket secured to a curtain wall mullion with a centrally positioned light fixture below. The assembly features an FP-1 fin with precise dimensions, including a six-and-a-half-inch distance from the centerline of the fin to the inside face of the bracket. Plate cutouts are dimensioned symmetrically across the bracket, with gaps measuring two and three-eighths inches, two and three-quarters inches, and two and one-half inches. The overall projection from the inside face of the bracket to the edge of the fin measures one foot, eleven and one-half inches, while the light fixture is centered on a two-foot offset from the edge of the fin.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
