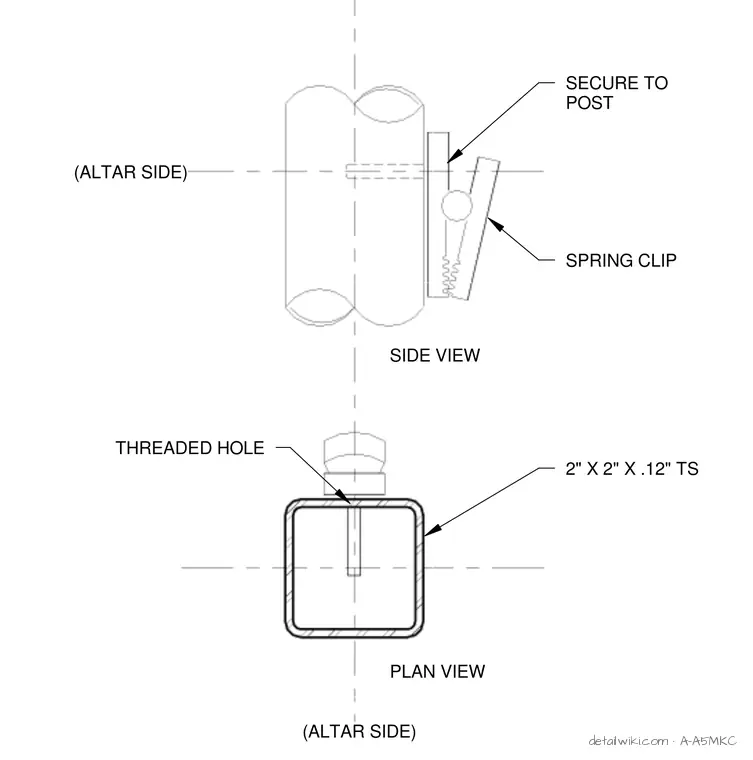

A-A5MKC — Language Card Clip

Architectural · A-A5MKC

Language Card Clip

Scale: SCALE: 6" = 1'-0"
Units: imperial
Sheet: A-554
Discipline: Architectural

Materials

Metal (misc.)Steel

Elements

Columns Connections / Plates Millwork / Casework

Connections

Bolted Connection

Text on the drawing

PLAN VIEW SIDE VIEW (ALTAR SIDE) (ALTAR SIDE) SPRING CLIP SECURE TO POST 2" X 2" X .12" TS THREADED HOLE
