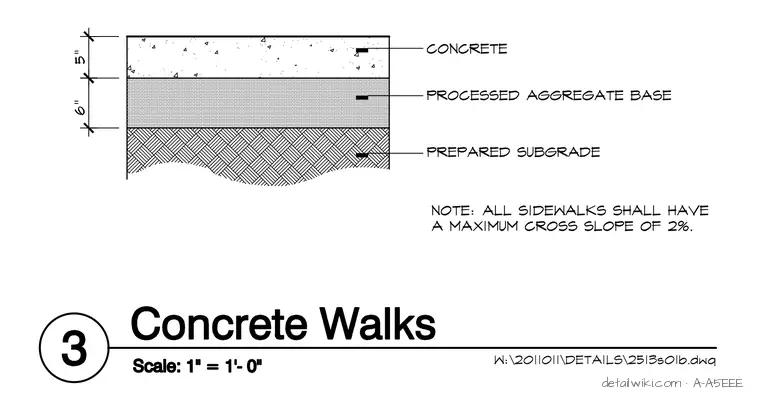

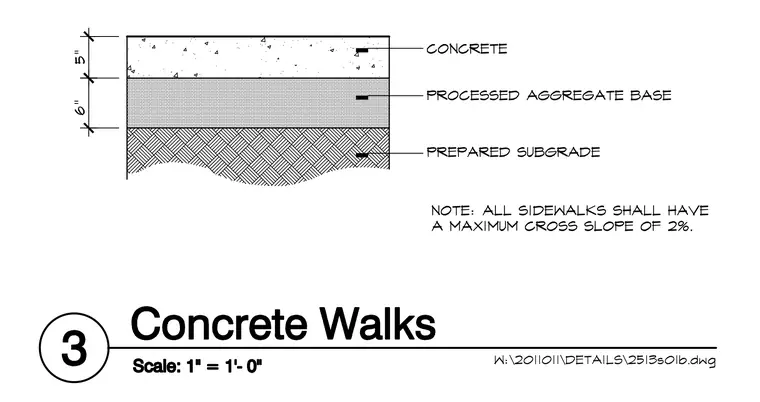

The exterior flatwork assembly consists of a five-inch concrete topping slab supported by a six-inch processed aggregate base course over a prepared subgrade. A general drawing note specifies that all sidewalks shall have a maximum cross slope of two percent.
