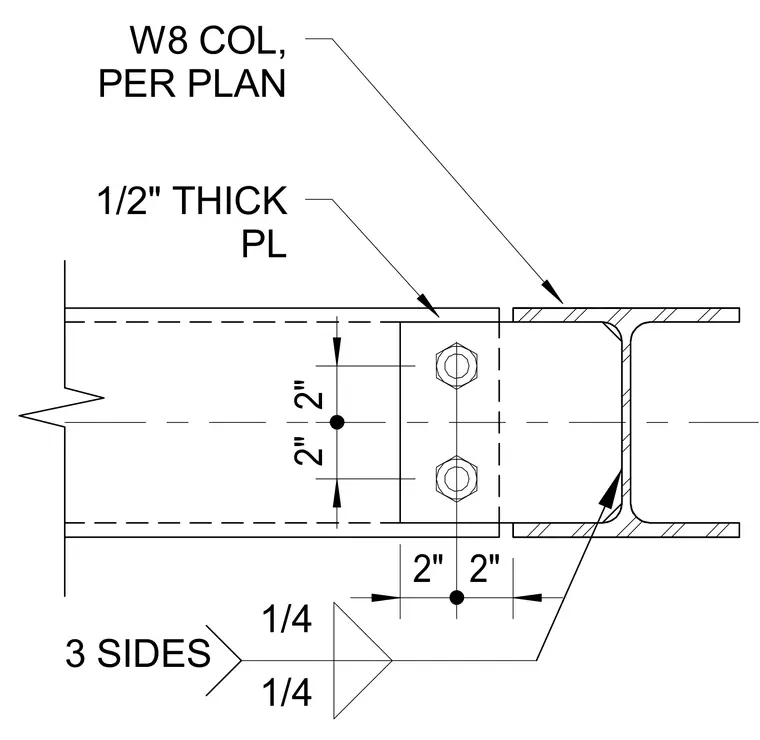

A structural steel connection joins a framing member to a wide flange W8 column sized per plan. A one-half-inch thick plate connects the members using bolts spaced with two-inch vertical and horizontal clearances. A one-quarter-inch fillet weld on three sides secures the connection.
