A hollow metal door assembly incorporates a minimum 24-inch high by 30-inch wide galvanized vent louver equipped with insect screens. The vent is positioned with a 38-inch dimension above the bottom of the door and a 10-inch clearance from the lower reference line. Adjacent detail callouts reference sheet AD-3 for related assembly conditions.

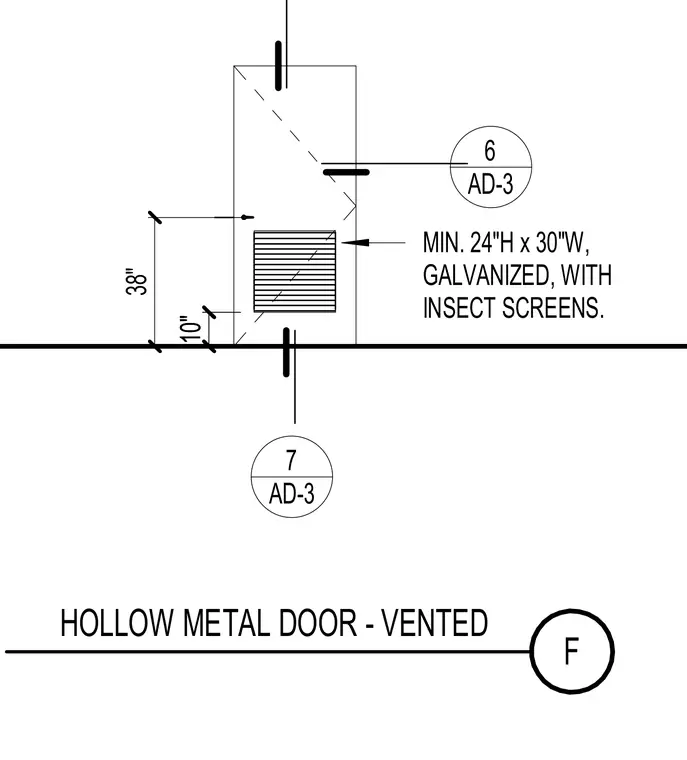

F HOLLOW METAL DOOR - VENTED 38" MIN. 24"H x 30"W, GALVANIZED, WITH INSECT SCREENS. 10" 6 AD-3 7 AD-3 10"
