Text on the drawing

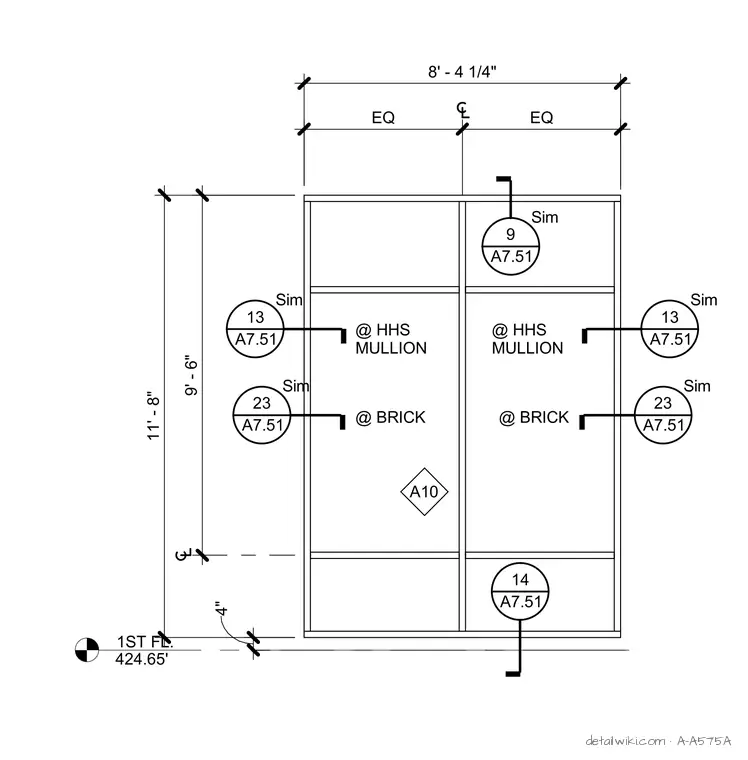

1ST FL. 424.65' EQ EQ 11' - 8" 4" 8' - 4 1/4" A10 9' - 6" 23 A7.51 Sim 9 A7.51 Sim @ HHS MULLION @ HHS MULLION @ BRICK 23 A7.51 Sim @ BRICK 14 A7.51 13 A7.51 Sim 13 A7.51 Sim
